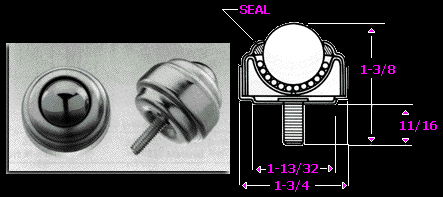

Stud Mount Ball Transfer Systems 1" Ball **(Below in the picture, the 1 3/8" measurement is incorrectly displayed.  It should be 1 3/8" from the top of the ball to the bottom of the housing.  The overall height is a combination of 1 3/8" and 11/16").  Ball Transfer can be used in the ball up or ball down position.

All steel ball transfers with your choice of stud sizes. Sealed and lubricated to prevent the entry of foreign material and increase the life of the unit. The 1-inch main ball rotates on an 80 1/8-inch support balls, and 1/4-inch stud in all stainless housing is perfect for food processing plants and corrosive environments. A 1-inch nylon main ball is available in both carbon steel and stainless steel for marking sensitive materials.

ALL STAINLESS STEEL BALL TRANSFERS MANUFACTURED, USE TWO DIFFERENT GRADES OF STAINLESS STEEL!  1) The stud cups, top covers, retainers, and bolts are manufactured with a 304 grade of stainless steel. 2) The ball cups, main balls, and support balls are manufactured with a 400+ grade of stainless steel.  All components using this grade are heat treated for hardness and durability.  Thus, the elements in the stainless steel become magnetized and responsive to a magnet.  Please call for all stainless quotes!!  All prices are subject to change.

Return Top of Page

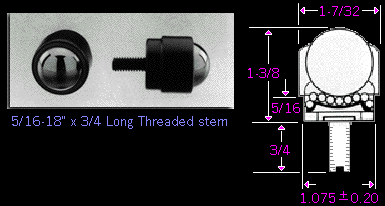

Stud Mount Ball Transfer Systems 1" Ball

This LSC unit with it's smaller outside diameter is designed for multiple unit installation.  Can only be used in the Ball up position.  All prices are subject to change.

Return Top of Page

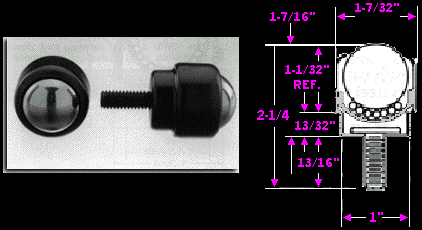

Stud Mount Ball Transfer Systems 1" Ball

Designed for multiple unit installation, these versatile ball transfers are engineered for either ball up, ball down, or sideways mounting. The HSC is constructed of a drawn steel housing with black oxide finish.  All prices are subject to change.



Pricing Above is our standard Pricing,
Please call for Quantity Discounts!  Price breaks start
at 50-100 pieces, then 100-499 pieces, then 500-2499 pieces, and 2500 pieces and above.


Return Top of Page

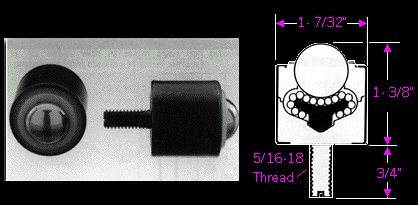

Stud Mount Ball Transfer Systems 3/4" Ball

The 3/4 SMC has a 3/4-inch diameter chrome steel main ball fitted with a molded nylon wiper seal, rotating on 3/32-inch support balls.

 **Parts have been discontinued and are no longer available.

   **

Return Top of Page

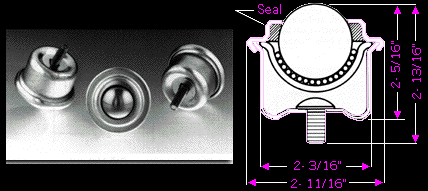

Stud Mount Ball Transfer Systems 1-1/2" Ball

With a 250 lbs. load capacity, this heavy duty unit is available in all carbon steel, all stainless steel, and as a carbon or stainless housing with a nylon main ball. A 3/8-16 stud allows faster, easier installation.

ALL STAINLESS STEEL BALL TRANSFERS MANUFACTURED, USE TWO DIFFERENT GRADES OF STAINLESS STEEL!  1) The stud cups, top covers, retainers, and bolts are manufactured with a 304 grade of stainless steel. 2) The ball cups, main balls, and support balls are manufactured with a 400+ grade of stainless steel.  All components using this grade are heat treated for hardness and durability.  Thus, the elements in the stainless steel become magnetized and responsive to a magnet.  Please call for all stainless quotes!!  All prices are subject to change.

Can be used Ball up or Ball down.



Pricing Above is our standard Pricing,
Please call for Quantity Discounts!  Price breaks start
at 50-100 pieces, then 100-499 pieces, then 500-2499 pieces, and 2500 pieces and above.
