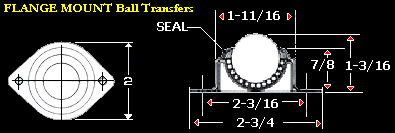

Flange Mount Ball
Transfer Systems 1"
Ball

All steel ball
transfer with a two-hole flange base for easy mounting. The
1-inch diameter main ball rotates on 80 1/8-inch support
balls. Hardened ball cup and sealed protective cover permit
low torque and long life. The all stainless steel units (part
numbers FMS & NFMS) provide excellent corrosion resistance
and greater load capacity. Nylon main ball units (Part
numbers NFMC & NFMS) are ideal for non marking
applications (glass, Polished steel).
ALL STAINLESS
STEEL BALL TRANSFERS MANUFACTURED, USE TWO DIFFERENT GRADES OF
STAINLESS STEEL! 1) The stud cups, top covers,
retainers, and bolts are manufactured with a 304 grade of
stainless steel. 2) The ball cups, main balls, and support
balls are manufactured with a 400+ grade of stainless
steel. All components using this grade are heat treated
for hardness and durability. Thus, the elements in the
stainless steel become magnetized and responsive to a
magnet. Please call for
all stainless quotes!! All prices are subject to change.
Part
#
|
Ball
Material
|
Housing
|
Load
Capacity
|
Price |
|
FMC
FMS
NFMC
NFMS
|
Carbon Steel
Stainless
Nylon
Nylon
|
Carbon Steel
Stainless
Carbon Steel
Stainless
|
75 lbs.
125 lbs.
75 lbs.
75 lbs.
|
4.99
Call
9.52
Call
|
Pricing Above is our
standard Pricing,
Please call for Quantity Discounts! Price breaks start
at 50-100 pieces, then 100-499 pieces, then 500-2499 pieces, and 2500 pieces and
above.

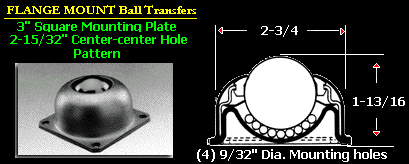

Flange Mount Ball Transfer
Systems 1-1/2"
Ball
**Disclaimer: The center to center
hole pattern below is incorrect.
The measurement should actually
read: 2-15/32".
This heavy
duty ball transfer has a 1 1/2-inch main ball that rotates on
90 3/16-inch support balls. The four-hole flange facilitates
easy installation. The nylon seal prevents entry of dirt and
foreign matter while the armored protective cover provides
ultimate protection against damage. Available in all-stainless
steel for additional strength and durability. The 1 1/2 NFMC
with it's nylon main ball provides protection from marking
sensitive surfaces.
ALL STAINLESS
STEEL BALL TRANSFERS MANUFACTURED, USE TWO DIFFERENT GRADES OF
STAINLESS STEEL! 1) The stud cups, top covers,
retainers, and bolts are manufactured with a 304 grade of
stainless steel. 2) The ball cups, main balls, and support
balls are manufactured with a 400+ grade of stainless
steel. All components using this grade are heat treated
for hardness and durability. Thus, the elements in the
stainless steel become magnetized and responsive to a
magnet. Please call for
all stainless quotes!! All prices are subject to change.
Part
#
|
Ball
Material
|
Housing
|
Loading
Capacity
|
Price |
|
1 1/2 FMC
1 1/2 FMS
1 1/2 NFMC
1 1/2 NFMS
|
Carbon Steel
Stainless
Nylon
Nylon
|
Carbon Steel
Stainless
Carbon Steel
Stainless
|
250 lbs.
350 lbs.
250 lbs.
250 lbs.
|
19.10
Call
27.81
Call
|
Pricing Above is our
standard Pricing, Please
call for Quantity Discounts! Price breaks start
at 50-100 pieces, then 100-499 pieces, then 500-2499 pieces, and 2500 pieces and
above.
