ON SALE! SPECIALS



5" INDUSTRIAL GENERAL WAREHOUSE AND DOLLY CASTERS:

FEATURES

·         Finish - Corrosion resistant Zinc

·         Swivel - Horn and bearing raceway are formed from a single piece of heavy-gauge steel, deeply corrugated to withstand stress and prevent distortion under full rated load.

·         Riveted and coined Kin Pin for durability in rated service.

·         Load Bearing - Single row of hardened, polished ball bearing roll freely in a large-diameter, lubricated raceway.

  • MADE IN THE USA!


SINTERED IRON WHEELS

Top Plate and Bolt Hole Specifications



Top Plate
Size

Bolt Hole
Centers

Attaching
Bolt Size

Swivel

5 1/16" x 5 15/16"

3 3/4" x 4 1/2"

7/16"

Rigid

3 1/2" x 7 1/4"

1 7/8" x 6"

7/16"



Wheel

Cap.

Load
Height

Swivel
Radius

CASTER ORDERING NUMBER

Dia.

TW

Type

Brg.

lbs.

Ins.

Ins.

Swivel

Rigid

5"

1 5/8"

Sintered Iron

Plain

500

6 9/16

3 15/16

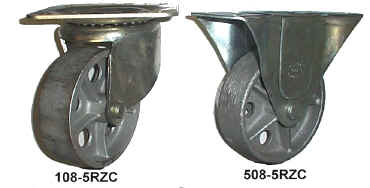

108-5RZC

508-5RZC

SALE PRICE EACH:

Call

Call


*release quantities any / HURRY! while supplies last
call for availability

<RETURN TO SPECIALS

   MORE COMING SOON....
