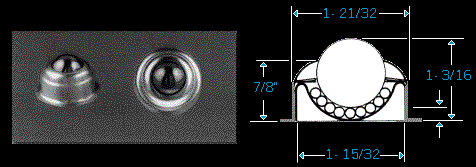

Round Mount Ball Transfer
1" Ball
These
all-carbon or all-stainless steel units can be column mounted for
ball-up roller application. The 1-inch diameter main ball rotates on
1/8-inch support balls in a hardened steel cup.
ALL STAINLESS STEEL BALL
TRANSFERS MANUFACTURED, USE TWO DIFFERENT GRADES OF STAINLESS STEEL!
1) The stud cups, top covers, retainers, and bolts are manufactured with
a 304 grade of stainless steel. 2) The ball cups, main balls, and
support balls are manufactured with a 400+ grade of stainless steel.
All components using this grade are heat treated for hardness and
durability. Thus, the elements in the stainless steel become
magnetized and responsive to a magnet. Please call for all
stainless quotes!!
Part
#
|
Ball
Material
|
Housing
|
Loading
Capacity
|
Price
|
|
RMC
RMS
NRMC
NRMS
|
Carbon
Steel
Stainless
Nylon
Nylon
|
Carbon
Steel
Stainless
Carbon
Steel
Stainless
|
75
lbs.
75
lbs.
75
lbs.
75
lbs.
|
4.50
Call
8.57
Call
|
Pricing
Above is our standard Pricing,
Please call for Quantity Discounts! Price
breaks start
at 50-100 pieces, then 100-499 pieces, then 500-2499 pieces, and 2500 pieces and above.
**Ready to place an order?
Please click below on the How to order link.
|
