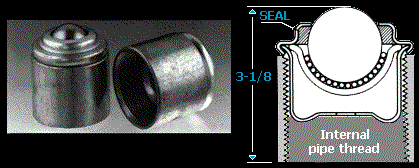

Pipe Mount Ball Transfer Systems 1-1-2" Ball

Pipe mount ball transfers provide support without hindering the operators movements. The 2-inch pipe mount, when used in front of shears or press breaks provides more accurate positioning than casters. Hardened ball and cup provide durability while the sealed housing keeps dirt out for long life. Corrosion-resistant stainless steel units are available for wash down applications. Available with a nylon main ball to prevent material marking.

ALL STAINLESS STEEL BALL TRANSFERS MANUFACTURED, USE TWO DIFFERENT GRADES OF STAINLESS STEEL!  1) The stud cups, top covers, retainers, and bolts are manufactured with a 304 grade of stainless steel. 2) The ball cups, main balls, and support balls are manufactured with a 400+ grade of stainless steel.  All components using this grade are heat treated for hardness and durability.  Thus, the elements in the stainless steel become magnetized and responsive to a magnet.  Please call for all stainless quotes!!  All prices are subject to change.



 Part #

Ball Material

Housing

Loading
Capacity

Price

 1 1/2 PMC2

1 1/2 PMS

1 1/2 NPMC2

Carbon Steel

Stainless

Nylon

Carbon Steel

Stainless

Carbon Steel

250 lbs.

250 lbs.

250 lbs.

35.46

Call

40.15

Pricing Above is our standard Pricing,
Please call for Quantity Discounts!

Price breaks start
at 50-100 pieces, then 100-499 pieces, then 500-2499 pieces, and 2500 pieces and above.
