Futura casters

Futura casters represent the future of caster technology for the most demanding institutional uses; they have the aesthetics expected by high-end cart designers, the endurance to stand up to frequent washing cycles, and the performance and value needed to put these casters into the broadest range of applications.

Look at these Features:

  • Available with tough Poly-Loc polyurethane or super-quiet Advantage TPR wheels for smooth, quiet operation
  • Ultra-Low maintenance
  • All internal races and components made of steel, with stainless available where corrosion is a concern
  • Impervious to common oils and chemicals
  • Tested under shock, impact, torque, dynamic and static conditions
  • Positive braking on all wheel styles
  • Total locks are available - brakes swivel and wheel simultaneously; also available with single-position directional lock for straight tracking
  • Great aesthetics with attractive optional thread guards and axle caps available on standard casters
  • Colors available on quantity orders
  • Continuous operation throughout 0 degrees Fahrenheit to 180 degrees Fahrenheit temperature range


Futura casters are available with all metal parts made of stainless steel, optional thread guards, and axle caps on standard casters, please do the following when ordering from the chart below:

  • To order stainless steel add S before the series number; for example, change 5-50MG-314GD to 5-S50MG-314GD
  • To order optional thread guards, add suffix TG
  • To order axle caps on standard casters, add suffix AC
  • For other accessories or special requirements, please contact us.



*Standard top plate: 2 3/8 x 3 5/8 with 1 3/4 x 3 bolt hole spacing for 5/16 bolt; for other options contact castersupply.
Dia. TW Wheel Type
Brg.
Cap.
Load.
Height
Swivel
Radius
Top Plate* Casters Ordering Number
Lbs.
Ins.
Ins. Plain Total Lock Swivel Lock
5"
1-1/4" Advantage Round Delrin
250
6 3/8
4" plain
5" with
lock
or
brake
5-50-MG-314GD 5-50MG-314GD APSL 5-50MG-314GDSL1
Advantage Flat Delrin 250 5-50MG-314GF 5-50MG-314GF APSL 5-50MG-314GFSL1
Polyurethane Delrin 250 5-50MG-314GP 5-50MG-314GP APSL 5-50MG-314GPSL1
Advantage Round Ball 250 5-50MG-213GD  5-50MG-213GD APSL 5-50MG-213GDSL1
Advantage Flat Ball 250 5-50MG-213GF  5-50MG-213GF APSL 5-50MG-213GFSL1
Polyurethane Ball 250 5-50MG-213GP 5-50MG-213GP APSL 5-50MG-213GPSL1



Dia. TW Wheel Type
Brg.
Cap.
Load.
Height
Swivel
Radius

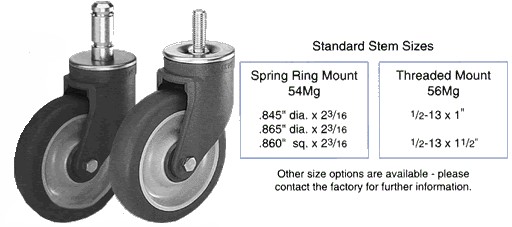

Spring Ring Stem* Casters Ordering Number
Lbs.
Ins.
Ins. Plain Total Lock Swivel Lock
5"
1-1/4" Advantage Round Delrin
250
6 1/4
4" plain
5"with
lock
or
brake
5-54MG-314GD 5-54MG-314GD APSL 5-54MG-314GDSL1
Advantage Flat Delrin 250 5-54MG-314GF 5-54MG-314GF APSL 5-54MG-314GFSL1
Polyurethane Delrin 250 5-54MG-314GP 5-54MG-314GP APSL 5-54MG-314GPSL1
Advantage Round Ball 250 5-54MG-213GD  5-54MG-213GD APSL 5-54MG-213GDSL1
Advantage Flat Ball 250 5-54MG-213GF  5-54MG-213GF APSL 5-54MG-213GFSL1
Polyurethane Ball 250 5-54MG-213GP 5-54MG-213GP APSL 5-54MG-213GPSL1



Dia. TW Wheel Type
Brg.
Cap.
Load.
Height
Swivel

Radius
Threaded Stem* Casters Ordering Number
Lbs.
Ins.
Ins. Plain Total Lock Swivel Lock
5"
1-1/4" Advantage Round Delrin
250
6 1/4
4" plain

5" with brake
5-56MG-314GD 5-56MG-314GD APSL 5-56MG-314GDSL1
Advantage Flat Delrin 250 5-56MG-314GF 5-56MG-314GF APSL 5-56MG-314GFSL1
Polyurethane Delrin 250 5-56MG-314GP 5-5M6G-314GP APSL 5-56MG-314GPSL1
Advantage Round Ball 250 5-56MG-213GD  5-56MG-213GD APSL 5-56MG-213GDSL1
Advantage Flat Ball 250 5-56MG-213GF  5-56MG-213GF APSL 5-56MG-213GFSL1
Polyurethane Ball 250 5-56MG-213GP 5-56MG-213GP APSL 5-56MG-213GPSL1
