p e n c i l   d r a w e r   s l i d e s

Applications: Pencil Drawers, Keyboard Supports,
Slide-Out Trays and Drawers

4450

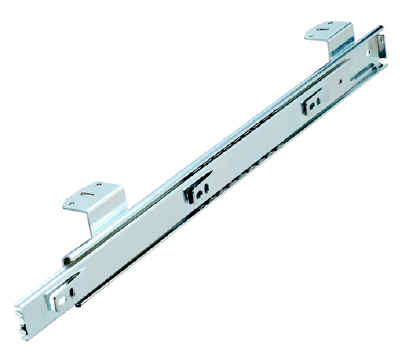

3/4 Extension Pencil Drawer Slide (Outward Top Mount)

O Ball bearing movement O Positive stop for fully extended drawers
O Urethane bumpers provide smooth and silent operation
O Friction release for drawer removal

Top mounting holes for #8 pan head screws
1.5" (38mm ) side clearance
1.94" ( 49mm ) overall height
12" ( 305mm ) to 28" ( 711mm )sizes in even increments
75 lbs. ( 34 kg ) BIFMA load rating
Finished with standard bright zinc chromate or optional gloss black







4450 3/4 Extension Pencil Drawer Slide  (Outward Top Mount)
Slide  length	Part Number	Finish	Package Qty.	Standard Price per pair
16"	4450B16Z	Zinc	10	11.86
	4451B16	Black	10	12.30
18"	4450B18Z	Zinc	10	12.17
	4451B18	Black	10	12.62
20"	4450B20Z	Zinc	10	12.38
	4451B20	Black	10	12.85

If you need quantity discounts or an inward mount please call for details...
ALSO AVAILABLE: 12", 14", 22", 24", 28" (250/PR. MIN ORDER)

* Please Remember: This is our   s t a n d a r d  p r i c e  for quantities listed !!
"please call for quantity discounts"!  All prices are subject to change.

(800)280-9566
